Bio Mapping


Bio Mapping Device


Technical Info


Bio Mapping consists of 3 different components.

1 A Galvanic Skin response sensor/data logger
2 A commercial GPS unit.
3 Visulisation/Mapping software.

Galvanic Skin response

I developed the Galvanic Skin response sensor/data logger which is now progressed to version 3. While arly prototypes used hand soldered boards and wires, they have now been replaced with custom made circuit boards.

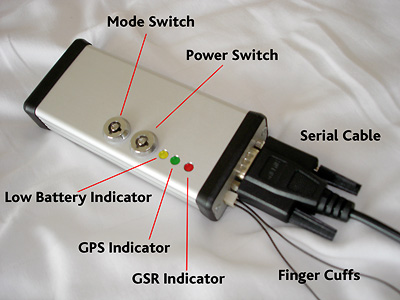

Bio Mapping Device

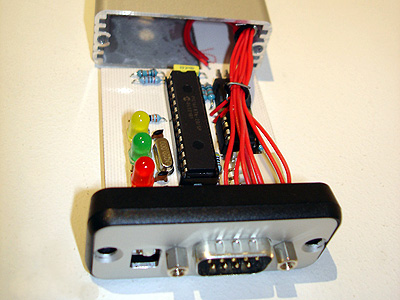

On the circuit board a PIC microcontroller passes a small current through one of the electrodes into the wearer's fingers and calculates how long it takes for a capacitor to fill up.

The GSR finger cuffs are based on a design from here http://www.plazaearth.com/usr/gasperi/gsr.htm

The length of time the capacitor takes to fill up allows us to calculate the skin resistance. A short time means low resistance while a long time means high resistance.

In itself this number is not very meaningful - i.e. one person's hands might be sweatier than another, but what is significant is the rate of change of this value over time.

The difficulty is working out all the correct timing in order to capture change and in particular the so called "Startle Response".

" GSR Physiology: Easily measured and relatively reliable, GSR has been used as an index for those who need some measurable parameter of a person's internal "state". As in EEG, there is not a clear understanding of what the measures reflect. Physiology, the GSR reflects sweat gland activity and changes in the sympathetic nervous system and measurement variables. Measured from the palm or fingertips, there are changes in the relative conductance of a small electrical current between the electrodes. The activity of the sweat glands in response to sympathetic nervous stimulation ( Increased sympathetic activation ) results in an increase in the level of conductance. There ia a relationship between sympathetic activity and emotional arousal, although one cannot identify the specific emotion being elicited. Fear, anger, startle response, orienting response and sexual feelings are all among the emotions which may produce similar GSR responses."
- Taken from Bio Medical.com website

GPS

In addition to the Galvanic Skin response the device also records the wearers location every 4 seconds. This position data as well as the arousal data is stored on a large EEPROM memory chip with 256k of storage which give me about 48 hours of recording - more than enough for my purposes.

Mapping

After the data has been downloaded the data is visualised using one of 3 different mapping systems.

The first is a custom a custom built software that functions like a data-driven slideshow which continuously zooms and pans through every participants walk and at intervals builds up a communal map of all the tracks. This software requires scanned maps.

Secondly, I use Google Earth to visualise the tracks after they have been converted to GPX by my custom software. The advantage of this that it is 3D, the map data is extremely high resolution and included with the application.

Third I use a tool written by Tom Carden in Processing to visualise the Bio Mapping walks. The advantage is that the visualisation can be heavily tweaked is open source and because it is 3D graphically very powerful.

---------------------------------------

This project has received technical advice and support from the following people:

Martin Yong - GSR sensors
Stevon Ritchie - Mapping software
Jeff Knowlton - Mapping software
Tom Carden - Processing mapping software

---------------------------------------------------------------------------
